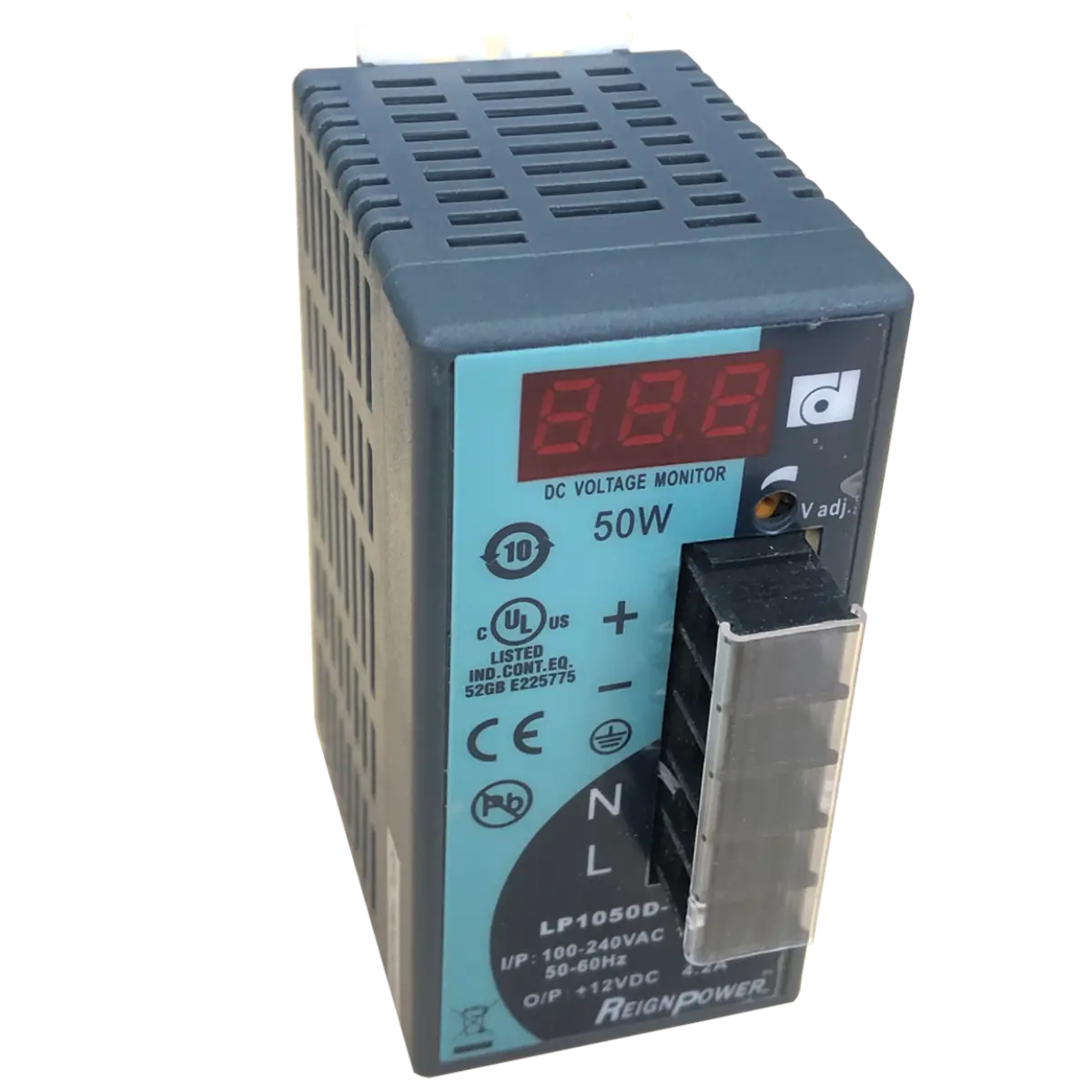

Reign Power LP1050D-12SDA 12Vdc 4.2A 50W DIN Rail Power Supply
Reign Power LP1050D-12SDA 12Vdc 4.2A 50W DIN Rail Power Supply
Introducing the LP1050D-12SDA by Reign Power, a versatile power supply unit designed for easy installation on a DIN rail or through screw fixation (with an optional bracket). This power supply is fully compliant with the stringent High Efficiency 80Plus criteria, ensuring optimal energy efficiency. Additionally, it meets the requirements of the 2010 Energy Conservation Erp Regulation.
Equipped with an "Output Voltage Monitor" display, this power supply allows you to conveniently monitor the output voltage. It operates on convection cooling, eliminating the need for additional fans or cooling systems. The wide input range accommodates various input voltages, providing flexibility in different applications.
To ensure top-notch quality, the LP1050D-12SDA has undergone a rigorous 100% burn-in test, guaranteeing its reliability and performance. It also adheres to the High Efficiency Power 80Plus criterion, further emphasizing its efficiency.
With compact dimensions of 102mm (H) x 75.5mm (D) x 45mm (W), this power supply offers a space-saving solution. Its output can be modified within a wide range of 3V to 200VDC, enabling customization to suit specific requirements.
Model: LP1050D-12SDA
Product Type: 12V DC Power Supply
Sold: Single
Input Voltage (Vac) |
Output Voltage (Vdc) |
Output Current |
Power (W) |
90-264 |
12V |
4.2A |
50 |
Specifications
MODEL |
O/P Volt Adj. ± % |
Load(Current) |
Ripple & Noise |
Line REG. |
Load REG. |
Efficiency |
O.V.P |
||
|
|
Min. |
Rated
|
Max. |
|
|
|
|
|
LP1050D-12S |
V : +12V ±10% |
0A. |
4.2A |
4.2A |
120mV |
±1% |
±1% |
85% Ref. |
17.1 ~ 18.9V
|
EMC Standards:
EN 55022 CLASS A
EN 61000-3-3,
EN 55024 (IEC 61000-4-2,
IEC 61000-4-3,
IEC 61000-4-4,
IEC 61000-4-5IEC 61000-4-6,
IEC 61000-4-8IEC 61000-4-11)
Safety Standards
UL 508 APPROVAL
CE Marking
Environment
Operating Temperature -15 ~ 50oC, Ambient
Operating Humidity 5 ~ 95% RH, No Condensing
Storage Temperature -20 ~ 85oC, Ambient
Vibration 2G, 10~500Hz, 3 axes
